Product Details
＋

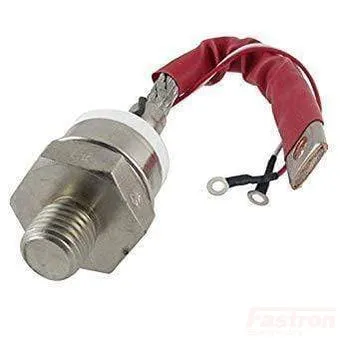

MS Power MSKP Series Stud Mount Thyristor(SCR)
Features
- Full blocking capability over wide temperature range
- Hermetic metal case with glass insulator
- Threaded stud
Applications
- Power Supplies
- Controlled Rectifiers
- AC Switch
- DC Motor Control
Specification
| MS Power Part Number | MSKP125S16U |
| Vrrm | 1600V |
| SCR Configuration | Anode Stud |
| IF(av) @ 100 Deg C | 196 Amp |
| IF(av) @ 125 Deg C | 125 Amp |
| Itsm | 1.9 kA |
| VF(to) | 1.20V |
| I(gt) | 150mA |
| Tj(max) | 125°C |
| rF | 1.90mΩ |
| Termination Style (Tail) | 10mm Round Lug |
| Termination Style (Stud) | M12 x 1.75P |
| Tail Length to Stud | 175mm |
| R th(j-c) | 0.24°C/W |
| R th(c-h) | 0.08°C/W |
| Weight | 520g |
| Mounting Torque | 14 Nm |
| Factory Pack Qty | 10 |
| Country Of Origin | China |
| MS Power Headquarters | Germany |
Datasheet
Obsolescence
This part is, Obsolete due to part number change see for replacement
